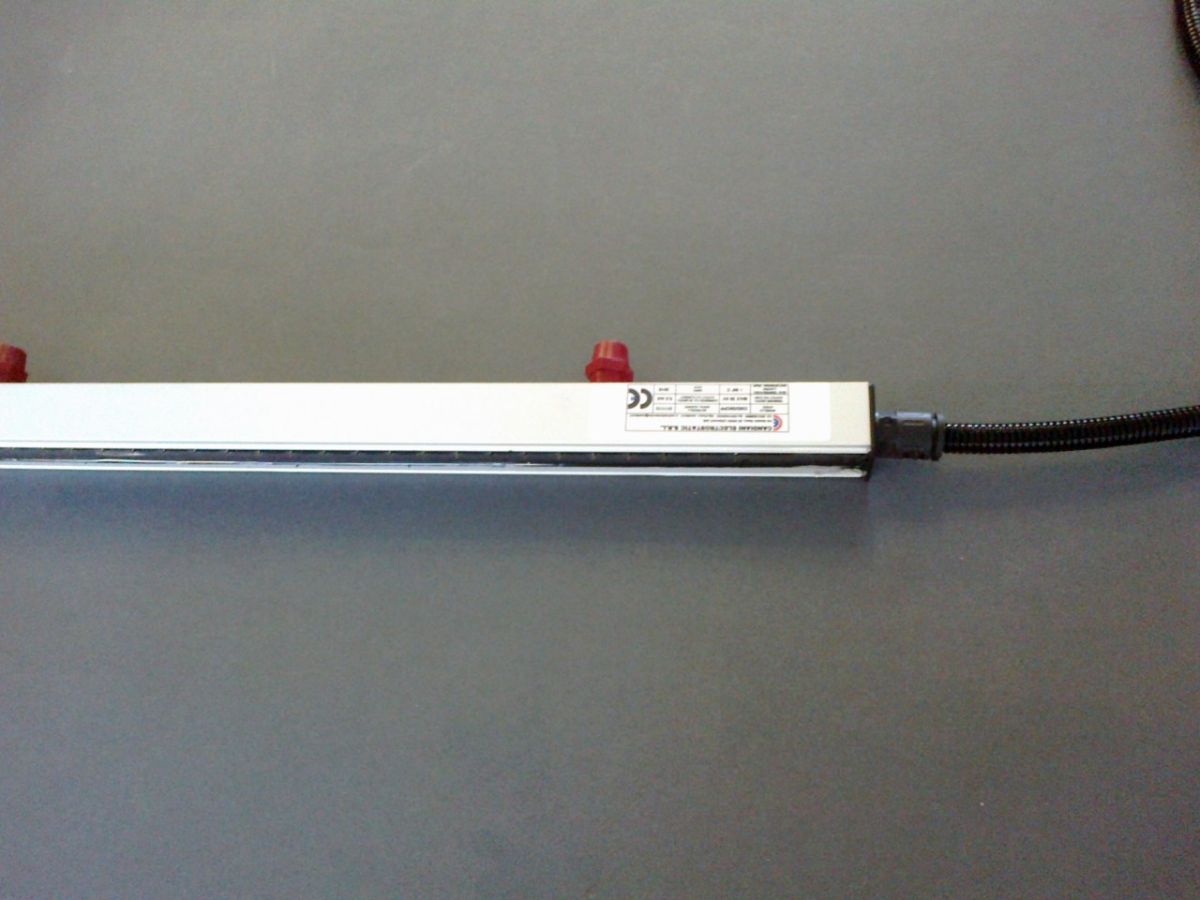

The construction of these bars -rectangular section - includes an aluminum support 30x20 mm and a green profile in polythene material , In the inner structure, properly isolated, are placed the electrodes for the passage of high tension.

The tips, in stainless steel, assembled with step 15 milimeters, have been put through a particular gilding treatment, allowing them a greater effectiveness. and a long lasting in the time.

They are equipped with lateral slots suitable to lodge a cover to use in order to restrict the working surface; as this cover doesn't guarantee safekeeping from shock to the touch, the bars must be placed in those parts of machine which are inaccessible to the operator.

To gurantee a long lasting in the time, It is very important to clean the tips periodically using a normal brush soaked in alcohol. The working distance from material from min. 30 milimeters to max. 100 milimeters. They are supplied complete of cable diam. 7 milimeter, 100 K, protection sheath diam 10x13 mm and connectors. The bars are available on different lengths up to 3,5 mts.Usually, the length of bar coincides with width of the material to charge .

Working voltage: 30 Kvdc
Max working temperature : + 50° C.
