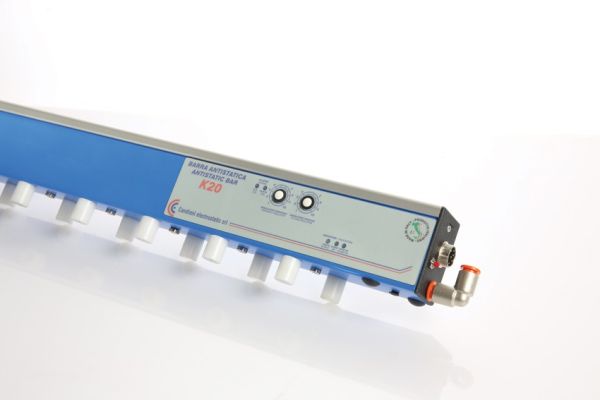

The bars are equipped with card with adjustment of the working frequency from 1 to 80 Hz, voltage adjustment from 11 to 20 kV, alarm signaling cc , Signaling alarm tips usury, high voltage output signal, signaling network 24 Vdc, signaling standby All signals are exported outside through an 8-pin connector.

The bars are constructed by connecting the two rows of emitters in a resistive with the conductors of high voltage (up to 20 Kv positive / negative)

They are free from shocks in case of accidental contact.

These bars have already 'built a middle row of nozzles 60 mm pitch for exit of the compressed air. The supply of compressed air (free of water, oil and other impurities) is guaranteed by one or two connectors (depending on the bar length) quick coupling for pipes diam 8 mm and a maximum power of use of 5 bar.

The distance from the material varies from minimum 50 mm to a maximum of 2000 mm, depending on the speed of passage of the material.

The bars are supplied as standard with plug connection; on customer request, they can be supplied with the plug assembled directly on power cable 8x0,35 mm in length of 5 meters or 10 meters. The standard length of construction can 'reach 2 meters.

Max working temperature: + 50 ° C.

Power consumption: 36 W.
