This version provides for a fixed voltage to 11 kV, it is equipped with signaling

Alarm short circuit, high voltage output signal, signaling network

24 Vdc, signaling STAND BY,

All signals are exported outside through an 8-pin connector.

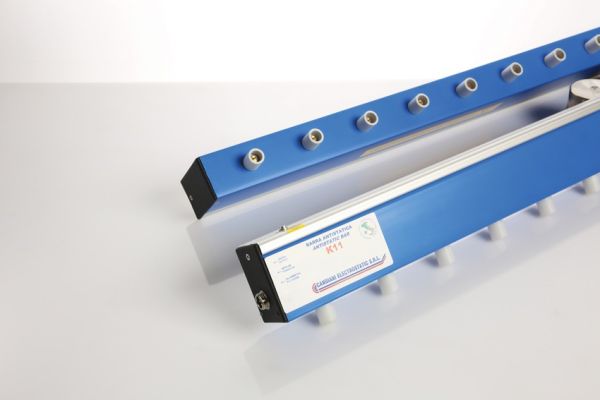

The bars are constructed by connecting a row of emitters in a resistive with the conductors of high voltage (up to 11 Kv positive / negative)

They are free from shocks in case of accidental contact.

The distance from the material varies from minimum 50 mm to maximum 500 mm, depending on the speed of passage of the material.

The bars are supplied as standard with plug connection; on customer request, they can be supplied with the plug assembled directly on power cable 5x0,25 mm in length of 5 meters or 10 meters.

The standard length of construction can 'reach 2 meters.

Max working temperature: + 50 ° C.

Power consumption: 36 W.
